PBC Flytbar omrører

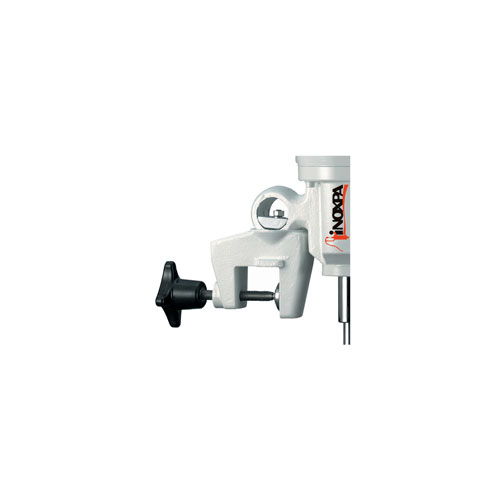

Agitator with clamp.
Retainer.
Bearing support.
Propeller attached to shaft and shaft attached to half-shaft by Allen setbolts.
IEC B14 motors, 1500 rpm, IP 55, F-class insulation.
Maximum power 0,75 kW.

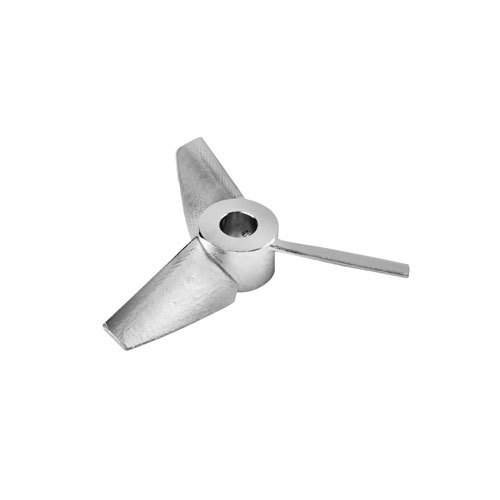

Lineflux propeller (Type 18).
Parts in contact with the media: AISI 316L
Retainer: NBR
Bearing support: Aluminum
Surface finish: Ra ≤ 0,8 μm (except Lineflux propeller)
Retainer in FPM.
Welded propeller with Ra ≤ 0,5 µm surface finish.
Motor shroud.
Motors with other protections.
Motors: 950 rpm or 750 rpm.
Pneumatic drive.
Parts in contact with the media: AISI 316L
Retainer: NBR
Bearing support: Aluminum
Surface finish: Ra ≤ 0,8 μm (except Lineflux propeller)
Retainer in FPM.
Welded propeller with Ra ≤ 0,5 µm surface finish.
Motor shroud.
Motors with other protections.
Motors: 950 rpm or 750 rpm.
Pneumatic drive.
Dokumentnummer. | FT.PBC.3_ES |
Titel | Agitador Portátil PBC |
Filtype | |
Resumé | La gama de la serie PBC son agitadores verticales de pinza con motor directo. Se pueden utilizar en procesos de mezcla, disolución, dispersión y mantenimiento tanto en la industria alimentaria, cosmética, farmacéutica y química dónde se requiera una fuerte agitación a gran velocidad. |
|
Dokumentnummer. | FT.PBC.3_EN |
Titel | Portable Agitator PBC |
Filtype | |
Resumé | The PBC series agitators are vertical direct motor-driven agitators with clamp. They can be used in processes of mixing, dissolution, dispersion, and maintenance whenever powerful and high-speed agitation is required in the food processing, cosmetics, pharmaceutical or chemical industries. |
|
Dokumentnummer. | FT.PBC.3_FR |
Titel | Agitateur Portable PBC |
Filtype | |
Resumé | La gamme de la serie PBC se compose d'agitateurs verticaux à pince avec moteur direct. Ils peuvent être utilisés dans des procédés de mélange, de dissolution, de dispersion et de maintenance dans l'industrie alimentaire, cosmétique, pharmaceutique et chimique, sur des produits qui ont besoin d'une agitation intense. |
|
Dokumentnummer. | FT.PBC.3_IT |
Titel | Agitatore Portatile PBC |
Filtype | |
Resumé | Questa gamma di agitatori sono agitatori con morsetto e con motore diretto. Si possono utilizzare nei processi di miscelazione, dissoluzione, dispersione e mentenimento sia nell’industria alimentare, cosmetica, farmaceutica e chimica dove si richieda una forte agitazione a grande velocità. |
|
Dokumentnummer. | FT.PBC.3_PT.pdf |
Titel | Agitador Portátil PBC |
Filtype | |
Resumé | A gama da série PBC é composta por agitadores verticais de pinça com motor direto |
|
Dokumentnummer. | FT.PBC.3_DE |
Titel | Mobiles Rührwerk PBC |
Filtype | |
Resumé | Bei der Baureihe PBC handelt es sich um Vertikalrührwerke mit Halteklammer und Direktmotor. |
|
Dokumentnummer. | FT.PBC.3_RU |
Titel | Переносная Мешалка PBC |
Filtype | |
Resumé | Серия мешалок PBC представляет вертикальные мешалки с приводом непосредственно от электродвигателя и креплением. |
|
Dokumentnummer. | FT.PBC.3_CN |
Titel | 移动式搅拌器 PBC |
Filtype | |
Resumé | PBC系列搅拌器是采用卡箍连接,垂直安装的电机驱动搅拌器。它们可广泛应用 于食品工业,化妆品工业,制药业和化工业。 |
|
Dokumentnummer. | 20.004.30.01ES |
Titel | INSTRUCCIONES DE INSTALACION, SERVICIO Y MANTENIMIENTO AGITADOR PORTATIL PBC |
Filtype | |
|
Dokumentnummer. | 20.004.30.01EN |
Titel | INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS PBC PORTABLE AGITATOR |
Filtype | |
|
Dokumentnummer. | 20.004.30.01FR |
Titel | INSTRUCTIONS D’INSTALLATION, DE SERVICE ET DE MAINTENANCE AGITATEUR PORTABLE PBC |
Filtype | |
|
