Chocolate Pumping

Chocolate Pumping

Anmod om information

Chocolate Pumping

Pumping chocolate (as well as compound chocolate, creams and cocoa paste) can be a delicate process. For this reason, a number of factors have to be taken into account.

Because the viscosity of the fluid can be very high, it is essential to select the appropriate chocolate pumps. We recommend using rotary lobe pumps: in addition to being capable of pumping high-viscosity products efficiently, they are hygienic and easy to clean.

Maintaining a constant temperature is very important. Too high a temperature can cause caramelisation of the product, whereas too low a temperature can lead to solidification or crystalisation, resulting in a reduced flow and the corresponding loss in efficiency and /or equipment damage. This could even cause the pump to become completely blocked.

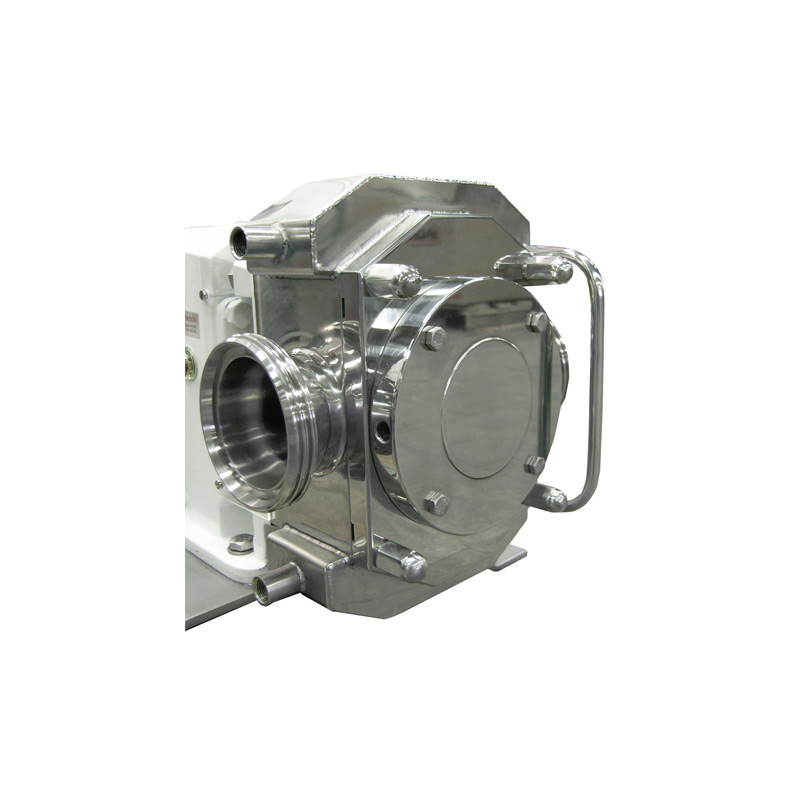

To maintain the temperature of the chocolate and avoid it solidifying inside the pump we recommend fitting a heating jacket to the front cover and/or to the pump body.

Anmod om information

Chocolate Pumping

Løsning

Chocolate is an abrasive, shear-sensitive product prone to caramelising, which means that aggressive pumping could damage both the product and any materials that are in contact with it.  For this reason, we recommend low working speeds, always taking into account the type of chocolate and the sealing system being used.

Guaranteeing that the product is contained within a well-sealed pump is particularly important. For chocolate pumping applications, we offer various options (all in compliance with FDA and EC-1935/2004):

a. Lip seal: the most economical option: maximum working pressure of 4 bar. Only recommended for very fluid and relatively non-abrasive chocolates, otherwise the useful life of the seals could be very short.

b. Lip seal with automatic or manual lubricator: maximum working pressure of 4 bar.

c. Mechanical seal with quench and automatic or manual lubricator: maximum working pressure of 4 bar. It consists of single mechanical seals (SiC/SiC/Viton) with lip seal in the rear chamber.

d. Double mechanical seal with automatic lubricator: maximum working pressure limit depends on the pump model.

Design og karakteristika

Chocolate is an abrasive, shear-sensitive product prone to caramelising, which means that aggressive pumping could damage both the product and any materials that are in contact with it.  For this reason, we recommend low working speeds, always taking into account the type of chocolate and the sealing system being used.

Guaranteeing that the product is contained within a well-sealed pump is particularly important. For chocolate pumping applications, we offer various options (all in compliance with FDA and EC-1935/2004):

a. Lip seal: the most economical option: maximum working pressure of 4 bar. Only recommended for very fluid and relatively non-abrasive chocolates, otherwise the useful life of the seals could be very short.

b. Lip seal with automatic or manual lubricator: maximum working pressure of 4 bar.

c. Mechanical seal with quench and automatic or manual lubricator: maximum working pressure of 4 bar. It consists of single mechanical seals (SiC/SiC/Viton) with lip seal in the rear chamber.

d. Double mechanical seal with automatic lubricator: maximum working pressure limit depends on the pump model.

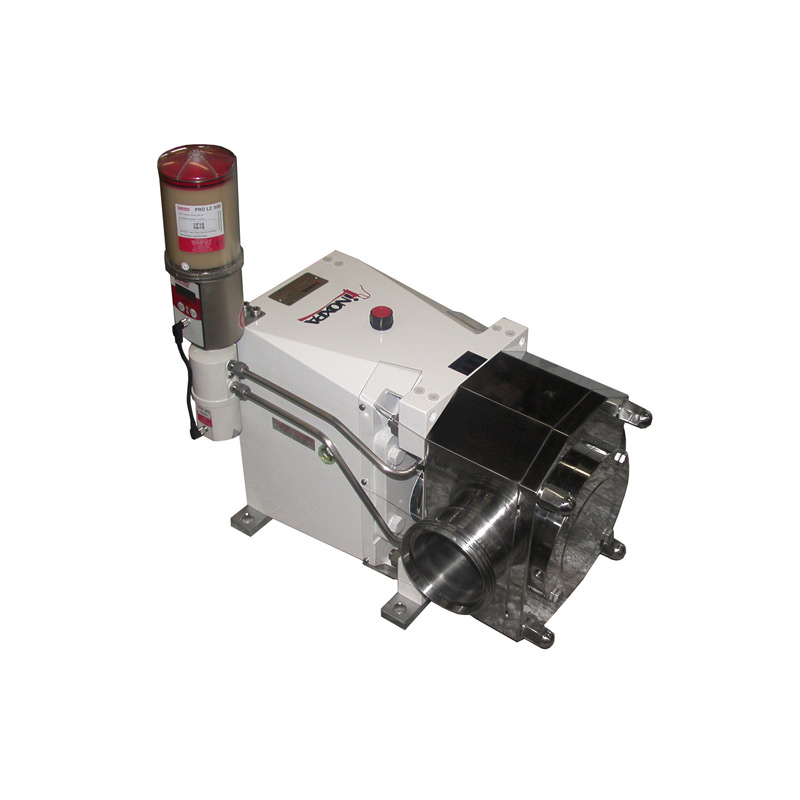

The lubricator is a high precision system with electromagnetic actuator, which pressurizes the chambers of the mechanical seals with food-grade grease certified according to USDAH1.

The flow of lubricating grease can be adjusted according to the requirements of the equipment being lubricated, potentially lasting up to 12 months. Hence, the friction faces of the mechanical seals will always work with clean grease between the contact surfaces rather than chocolate, which is abrasive and can caramelize, leading to rapid wear of the surfaces.

For the low-pressure options (b and c), either a manual or an automatic lubricator may be fitted. The manual option is battery powered and must be started and stopped by the operator. The automatic option works via an external power supply, hence it is possible to link it directly to the pump.

For the high-pressure option (d), only automatic lubricators are fitted. In addition, a relief valve is included to eject the grease from the chamber, avoiding any damage occurring due to excess pressure.

Dokumenter

Funktion

Chocolate is an abrasive, shear-sensitive product prone to caramelising, which means that aggressive pumping could damage both the product and any materials that are in contact with it.  For this reason, we recommend low working speeds, always taking into account the type of chocolate and the sealing system being used.

Guaranteeing that the product is contained within a well-sealed pump is particularly important. For chocolate pumping applications, we offer various options (all in compliance with FDA and EC-1935/2004):

a. Lip seal: the most economical option: maximum working pressure of 4 bar. Only recommended for very fluid and relatively non-abrasive chocolates, otherwise the useful life of the seals could be very short.

b. Lip seal with automatic or manual lubricator: maximum working pressure of 4 bar.

c. Mechanical seal with quench and automatic or manual lubricator: maximum working pressure of 4 bar. It consists of single mechanical seals (SiC/SiC/Viton) with lip seal in the rear chamber.

d. Double mechanical seal with automatic lubricator: maximum working pressure limit depends on the pump model.

Materialer and Muligheder

Dokumentnummer. FA.SLR Chocolate.1_ES
Titel Bombeo de Chocolate
Filtype .pdf
Resumé El bombeo de chocolate (así como sucédaneos, cremas y pastas de cacao) puede llegar a ser un proceso delicado, por lo que hay una serie de factores que deben tenerse en cuenta.
    Download
